Roadsky Galvanized Highway Guardrail C Channel Post

Item Code: Features:

Description

Rolled down by new technology, highway guardrail C post is a popular type because of its advantage of low cost, higher security, environmental protection. This type of post is the most common applied post in the highway guardrail projects and can be hammered by different types of hammers.

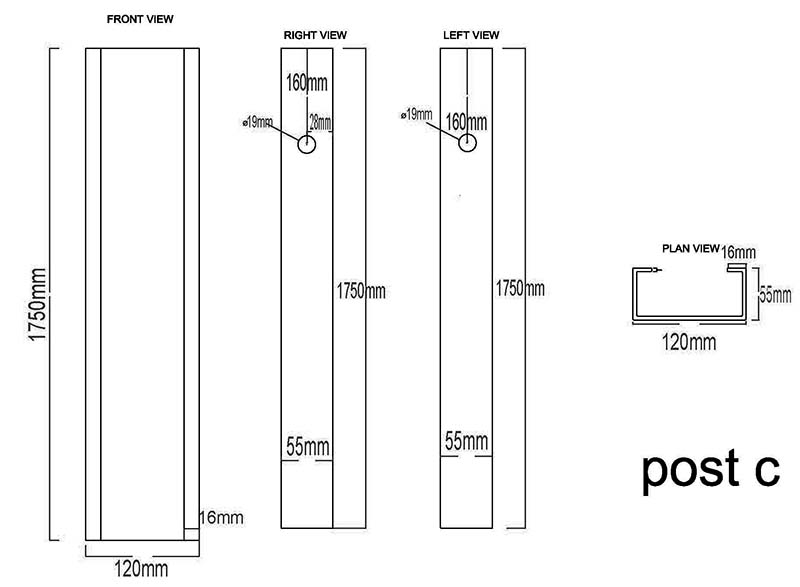

Normal Size	150010050255mm,150012055164mm,1700150110184/4.5mm,17501205516 4mm,190010055256mm and available in different sizes.
Applicable standards	JT/T 281-1995(China), AASHTO M180-79(USA), TL-SP 92(Germany) or any other International Standards.
Base steel:	Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).
The thickness of the steel	4~7mm or customized
Surface treatment	Hot dip galvanized
The thickness of galvanized (double sides)	550g/m2 (80µ) or 610g/m2 (85µ) or 1100g/m2 (160µ) or 1200g/m2 (170µ) or as per your request.
Relevant parts required for guardrails	Guardrail Beams, Posts, End Terminal, Spacers / Offset Blocks, Reflector, Anti Dazzle Boards and Bolt & Nut & Washer etc.
Features	Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc
