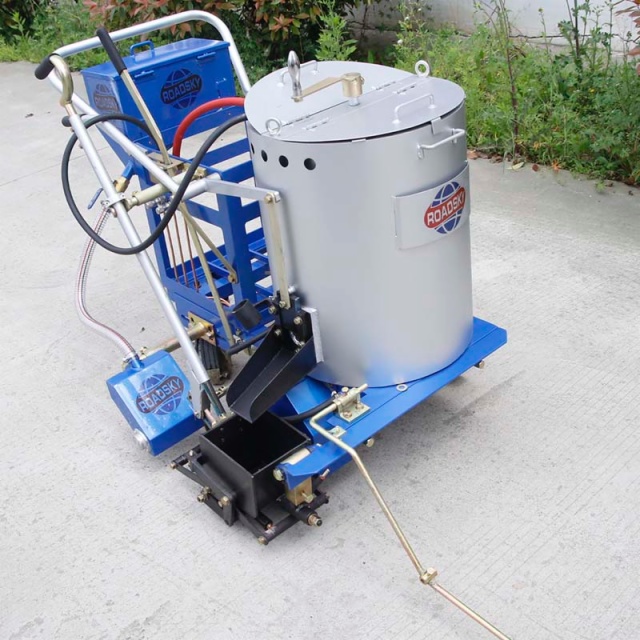

RS-1 Thermoplastic Road Marking Machine RS-1A/B

Item Code:RS-1A/B Features:
  • Description

RS-1 series hand push thermoplastic road marking machine (pavement marking machine) is special-purpose equipment for road marking. It is used for highway, road axis, lane line, community, airport,etc. to mark all sorts of thermoplastic lines that are reflective such as straight line,dotted line, curve, oriented arrow, and letters.


Thermoplastic Paint Tank Capacity 100KG, 200KG or Customized
Glass Beads Tank Capacity 10 kg
Dimensions 1210*760*1000 mm
Weight 125 kg
Marking Width 50mm to 500mm or customized
Marking Thickness 1mm to 4mm
Marking Speed 500-1200 m/h
Service Life 5 to 10 years according workload
Application Area highway,urban street, parking lots

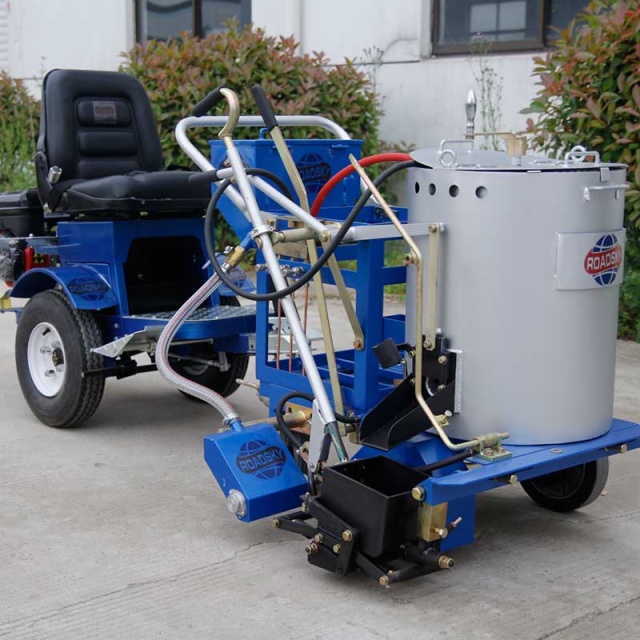

Optional Equipment RS-11, double dispenser, adjustable dispenser, double line die shoe

CE Certification

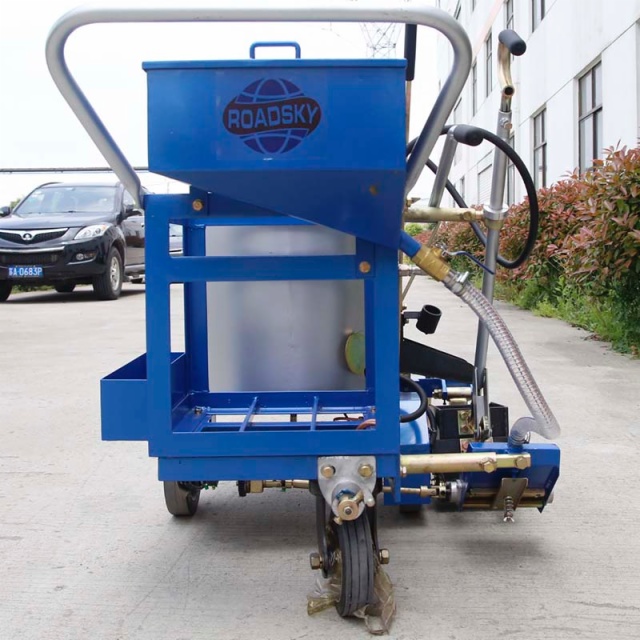

Model: RS-1
Easy operation: This machine is easy to operate for its simple structure.
Long service life: According to working volumes, the service life can reach 5~10 years.
Flexibility application: Flexibility use for different road marking projects.

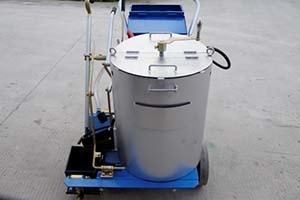

Paint tank: The standard capacity is 100kg, yet can be customized according to specific order.

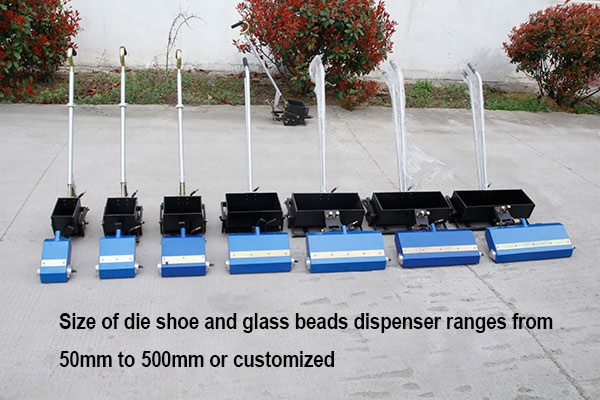

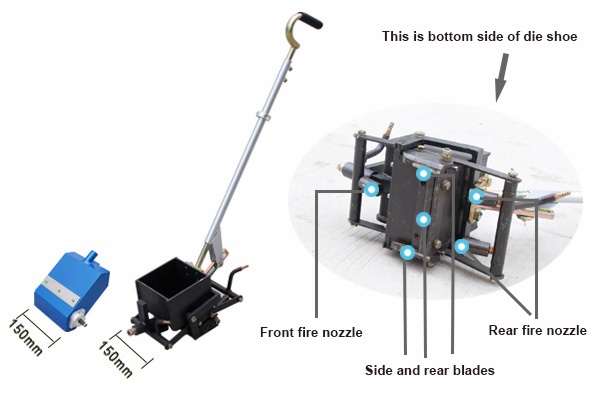

Die Shoe: Pavement marking die shoe of different width can be customized ranging from 50mm to 500mm. Double line die shoe is also avaliable.

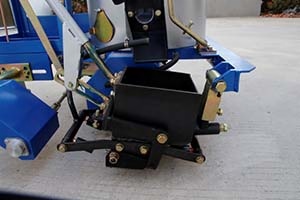

Glass bead dispenser: this device is strictly matched with the specific die shoe and can be only applied in dies of certain specification. Adjustable dispenser is available.

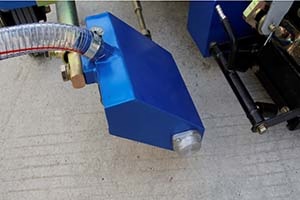

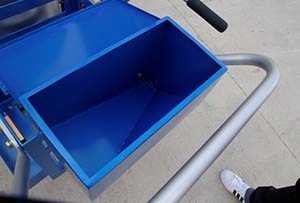

Glass beads tank: its tilting bottom makes it convenient for glass beads to flow.

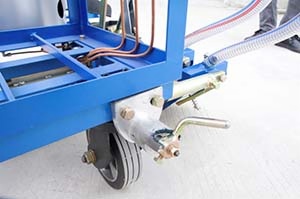

Rear wheel holder: it serves as a switch: when turned on, the machine can move freely; when turned off, the machine can only move in one direction.

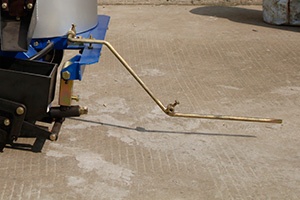

Indicative rod: it functions as a guide: if it is aligned with waterline, then the direction of marking is correct.

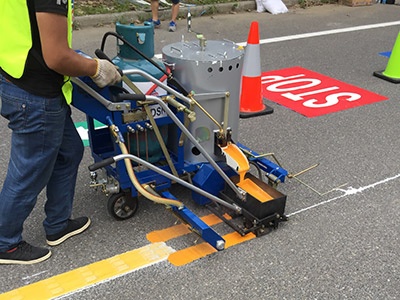

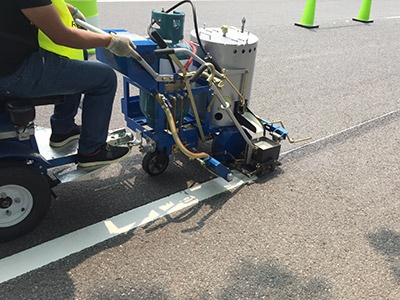

On-Site Working
