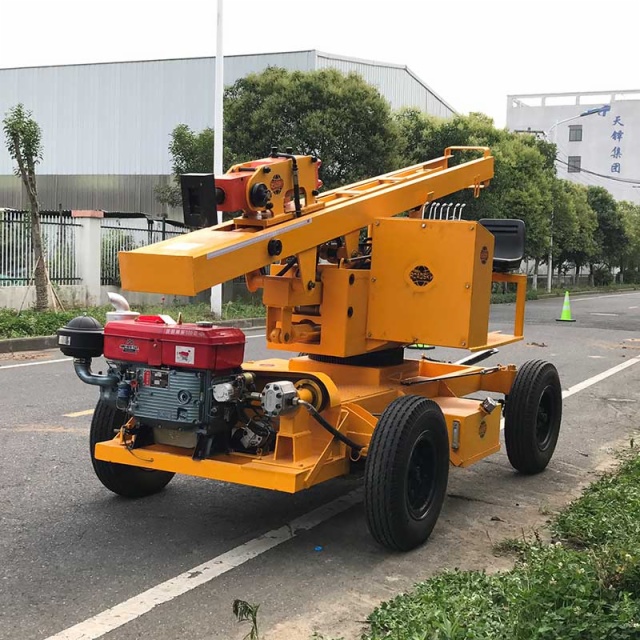

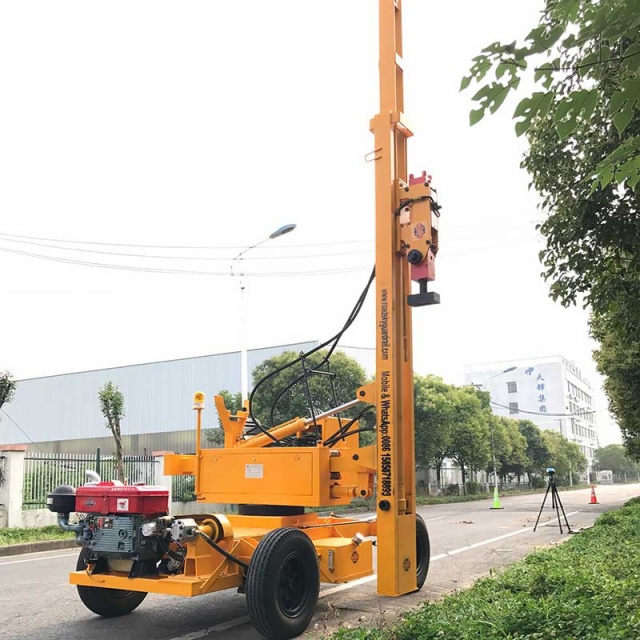

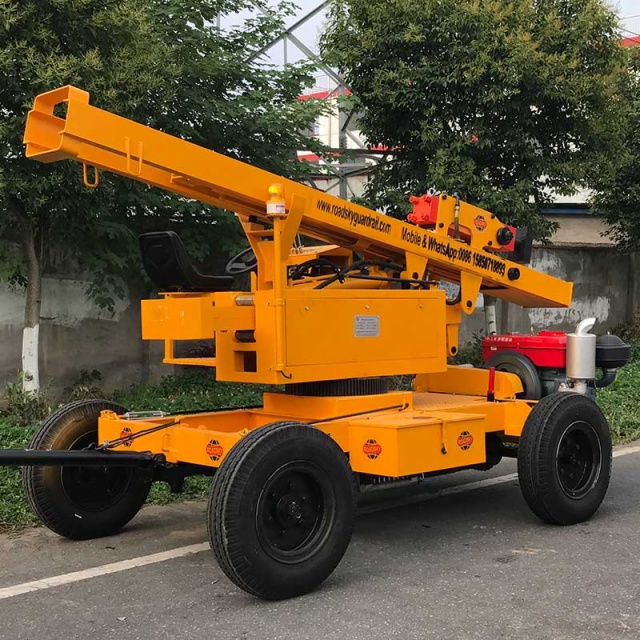

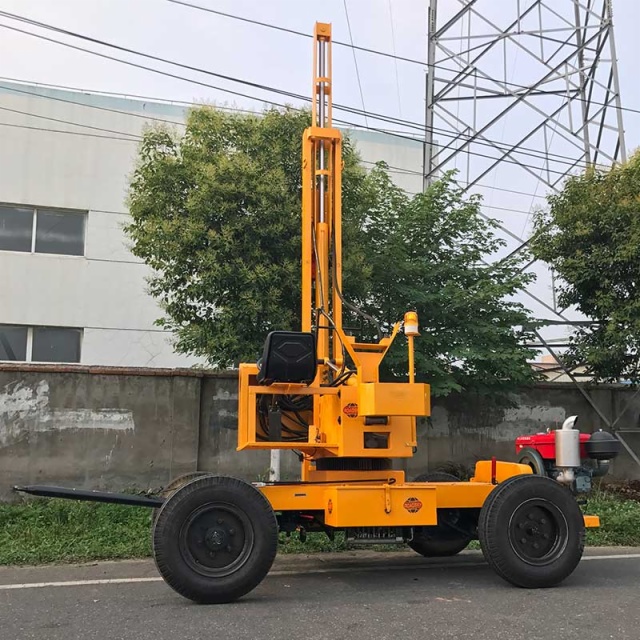

Roadsky TDB Series Highway Guardrail Hydraulic Post Driver TDB

  • Description

Performance:

(1) Pile Driving Function. They are also used for the installation of photovoltaics (PV), solar cells and panels.

(2) Pile Extracting Function, extracting poorly driven or incorrectly positioned posts in road maintenance work.

(3) Pile Drilling Function, it can drill holes into concrete, rock, granite and other very hard road materials, and then easily install the posts. P.S: The related machine is hydraulic driller, which just has drilling function, the pictures of driller as shown above.

Features:

(1) Pile driving and pile extracting share the same guide rail, so TDB series pile driver combines two functions:pile driving and pile extracting in one.

(2) It can rotate freely and install posts at both sides, which is more convenient than other series.

Specifications:

Model Unit   TDB180 TDB230 TDB330
Pile Driver and Extractor Hammer Rating Joule 400-500 600-800 900-1400
Hammer Weight Kg 180 230 330
Blows per minute Times 350-780 600-900 500-735
Horse Power HP 22 24 32
Working Pressure Mpa 10-13 10-17 9-13
Oil Flow L/min. 30-55 36-65 45-65
Oil Tank Capacity L 100 100 120
Weight Kg 2600 2800 3100
Size (L*W*H) Mm 4300*2000*2600
Pile Extracting Force KN 20 30 35
Pile Driller Size (L*W*H) Mm 3200*350*250
Weight Kg 300 310 320
Air Flow m3/min. 10 13 18
Diameter of Drilling Holes Mm 120 150 200
Max. Drilling Depth Mm 1700
Working efficiency mm/min. About 250

Main components:

(1) multidirectional control valves and centralized hydraulic control rods

(2) Changchai brand diesel engine

(3) Rotary table

(4) Hydraulic hammers

(5) Hydraulic motor

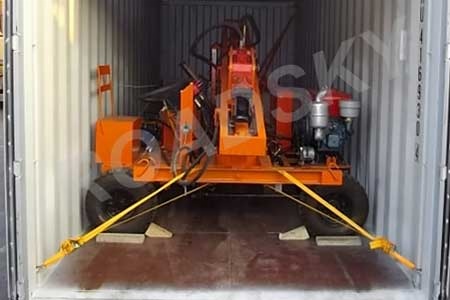

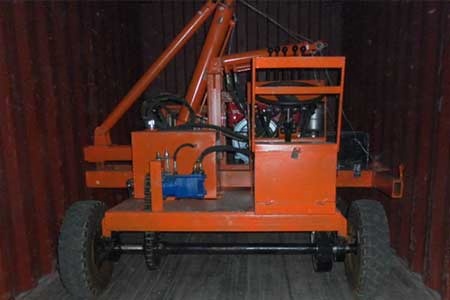

Shipping:

One 20' container can just load one set of TDB series pile driver.

On-Site Usage:
