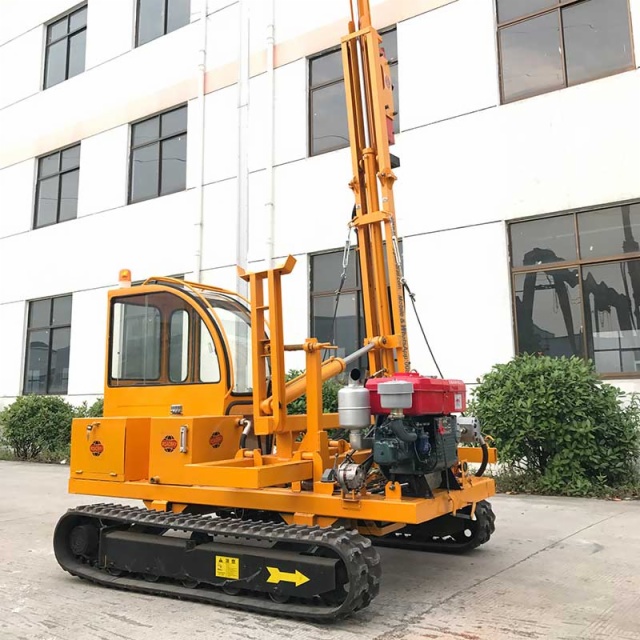

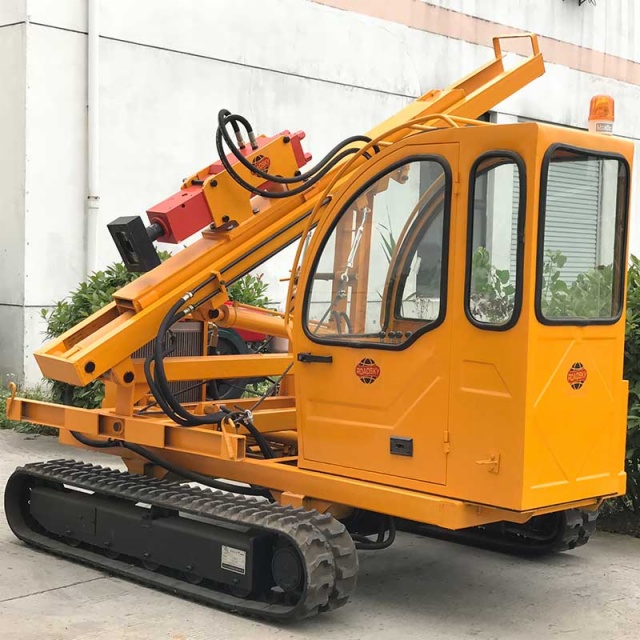

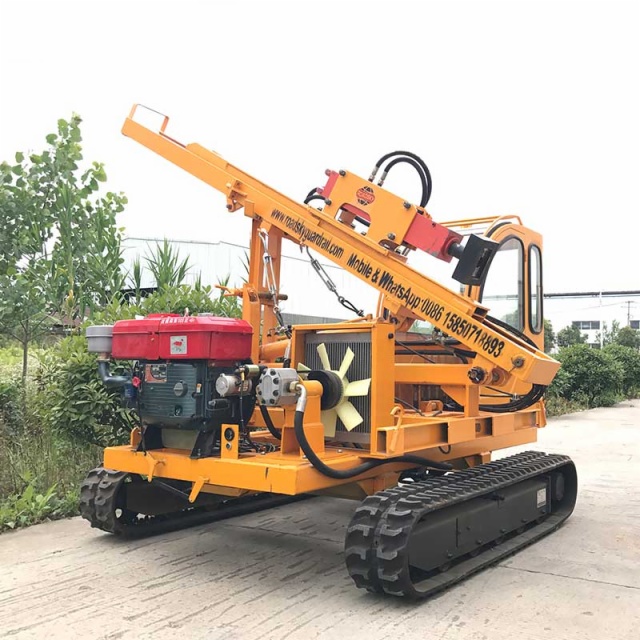

Roadsky YC Series Crawler Pile Driver YC

  • Description

Performance:

1 Pile Driving Function: YC Series Crawler Pile Driver is designed to install and maintain the highway anti-collision guard rails and guardrail posts. It is also used for the installation of photovoltaics (PV), solar cells and panels.

2 Pile Extracting Function: With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work, it is a professional machine for extraction of posts from any surface condition.

3 Pile Drilling Function: This equipment can drill holes into the concrete, rock, granite and other very hard road materials, and then easily install the posts.

Specifications:

  Model Unit YC180 YC230 YC330
Pile Driver and Extractor Hammer Rating Joule 400-500 600-800 900-1400
Hammer Weight Kg 180 230 330
Blows per minute Times 350-780 600-900 500-735
Horse Power HP 22 24 32
Working Pressure Mpa 10-13 10-17 9-13
Oil Flow L/min. 30-55 36-65 45-65
Oil Tank Capacity L 100 100 120
Weight Kg 2500 2600 2900
Size (L*W*H) Mm 2300*3200*1900
Traveling Speed km/h 0-8
Tow Speed km/h 0-50
Pile Extracting Force KN 20 30 35
Pile Driller Size (L*W*H) Mm 3200*350*250
Weight Kg 300 310 320
Air Flow m3/min. 10 13 18
Diamter of Drilling Holes Mm 120 150 200
Max. Drilling Depth Mm 1700
Working efficiency mm/min. About 250

Main components:

(1) Hydraulic pump

(2) Hydraulic motor

(3) Multidirectional control valves and centralized hydraulic control rods

(4) Changchai brand diesel engine

(5) Hydraulic hammer and hammer adapter

(6) Pile extractor

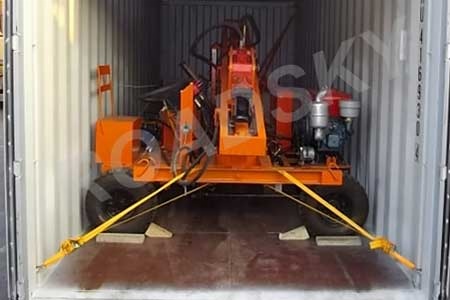

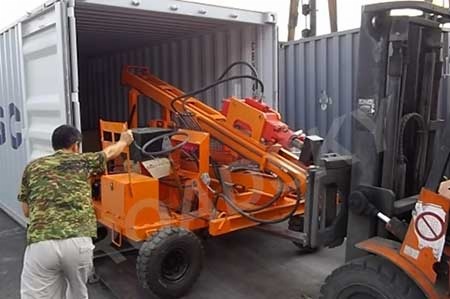

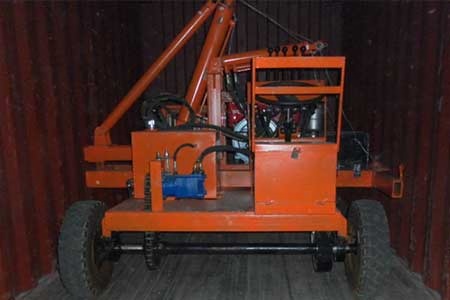

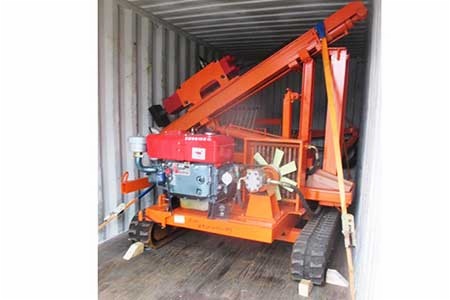

Shipping:

One 20' container can load two sets of YC series pile drivers.

On-Site Usage:
