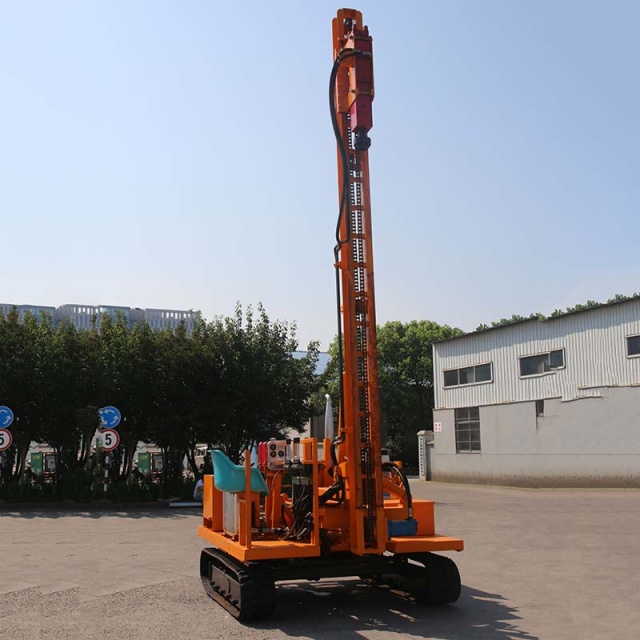

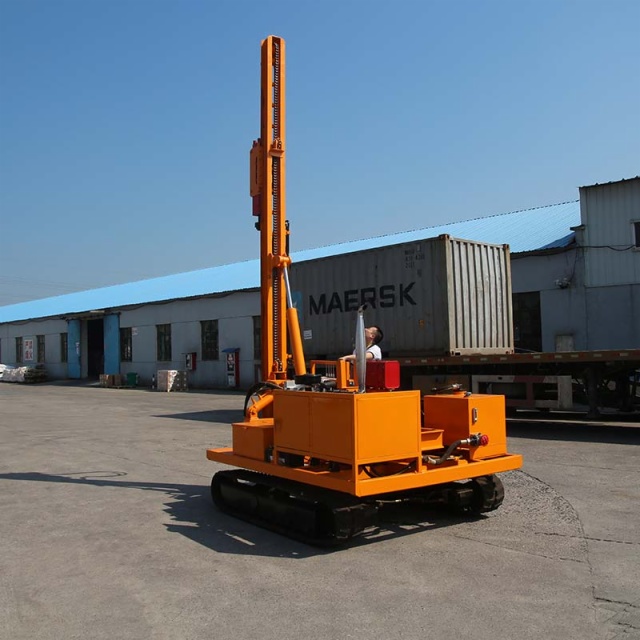

Crawler Solar Pile Driver with Hydraulic Hammer YCR230

Item Code:YCR230 Features:
  • Description

YCR series hydraulic solar pile driver is designed for solar power farm projects. The piling length can reach max 4.5m to match the needs of photo voltaic installation. Besides, the working platform can be 360 degree rotated for fast operation in solar power farm.

Specification:

  Model Unit YC230 YC330
Pile Driver and Extractor Hammer Rating Joule 600-800 900-1400
Hammer Weight Kg 230 330
Blows per minute Times 600-900 500-735
Horse Power HP 24 32
Working Pressure Mpa 16-18 16-18
Oil Flow L/min. 36-65 45-65
Oil Tank Capacity L 100 120
Weight Kg 2600 2900
Size (L*W*H) Mm 2600*2200*2300
Traveling Speed km/h 0-8
Pile Driller Size (L*W*H) Mm 3200*350*250
Weight Kg 350 360
Air Flow m3/min. 13 18
Diamter of Drilling Holes Mm 150 200
Max. Drilling Depth Mm 1700
Working efficiency mm/min. About 250

Working video:

YCR series hydraulic solar pile driver is designed for solar power farm projects. The piling length can reach max 4.5m to match the needs of photo voltaic installation. Besides, the working platform can be 360 degree rotated for fast operation in solar power farm.

Specification:

  Model Unit YC230 YC330
Pile Driver and Extractor Hammer Rating Joule 600-800 900-1400
Hammer Weight Kg 230 330
Blows per minute Times 600-900 500-735
Horse Power HP 24 32
Working Pressure Mpa 16-18 16-18
Oil Flow L/min. 36-65 45-65
Oil Tank Capacity L 100 120
Weight Kg 2600 2900
Size (L*W*H) Mm 2600*2200*2300
Traveling Speed km/h 0-8
Pile Driller Size (L*W*H) Mm 3200*350*250
Weight Kg 350 360
Air Flow m3/min. 13 18
Diamter of Drilling Holes Mm 150 200
Max. Drilling Depth Mm 1700
Working efficiency mm/min. About 250

Working video:
