Product Description:
The mobile scissor aerial work platform has the characteristics of flexible movement, stable lifting, and large load capacity. It is widely used in the installation and maintenance of high-altitude equipment such as construction sites, factories, warehouses, hotels, stadiums, stations, airports, etc., cleaning, etc. Lifting equipment maintenance, field power maintenance, steel structure workshop maintenance, etc.
Specification:
|
Safe Working Load
|
320 KG
|
|
Extended Platform Safe Working Load
|
1480 mm
|
|
Maximum Working Height (H2)
|
12 m
|
|
Maximum Platform Height (H1)
|
10 m
|
|
Overall Length
|
2480 mm
|
|
Machine Width
|
1150 mm
|
|
Overall Height (the fence is not folded)
|
2470 mm
|
|
Overall Height (fence folding) (H)
|
1990 mm
|
|
Working Platform Size
|
2270x1120 mm
|
|
Platform Extension Size
|
900 mm
|
|
Minimum Ground Clearance (collapsed state)
|
100 mm
|
|
Minimum Ground Clearance (lifting state)
|
19 mm
|
|
Wheelbase
|
1870 mm
|
|
Minimum Turning Radius (inner wheel)
|
0 mm
|
|
Minimum Turning Radius (outer wheel)
|
2200 mm
|
|
Lifting Motor
|
24/4.5 V/Kw
|
|
Machine Running Speed (collapsed state)
|
3.5 Km/h
|
|
Machine Running Speed (lifting state)
|
0.8 Km/h
|
|
Ascending/Descending Speed
|
45/36 sec
|
|
Accumulator
|
4x6/260 V/Ah
|
|
Charger
|
24/25 V/A
|
|
Maximum Climbing Ability
|
25 %
|
|
Maximum Working Angle
|
1.5-3°
|
|
Tire
|
φ381x127 mm
|
|
Total Weight
|
2508 KG
|

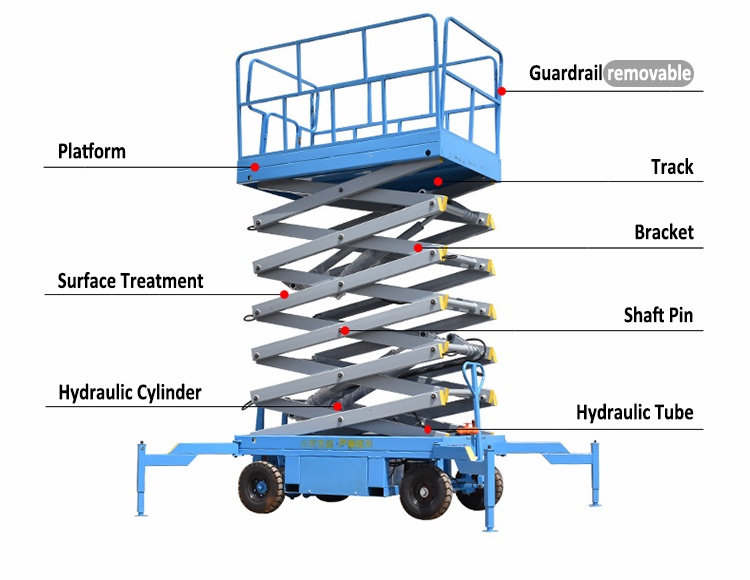

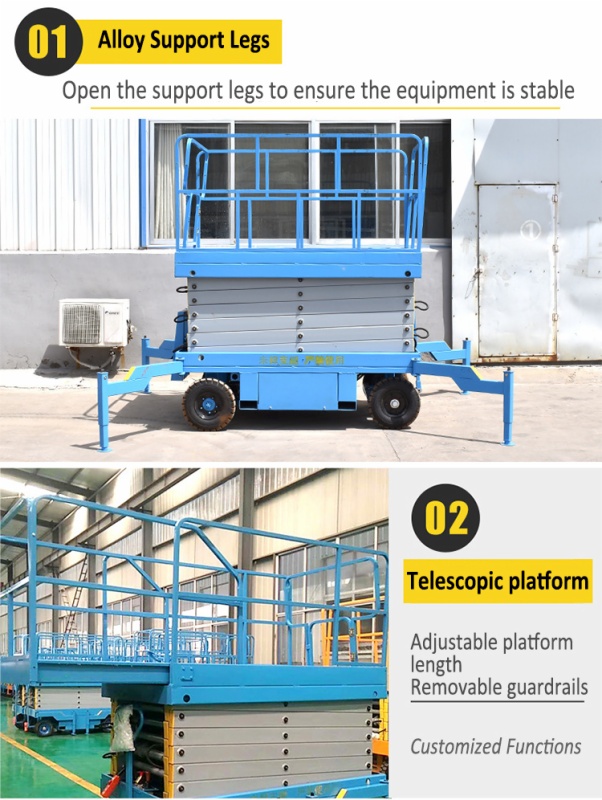

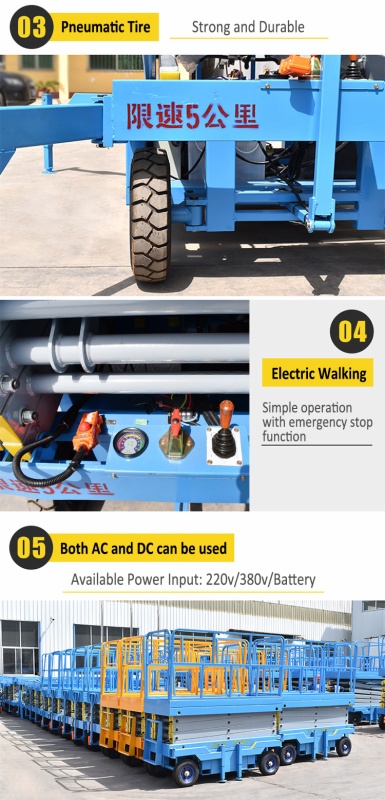

Advantages:

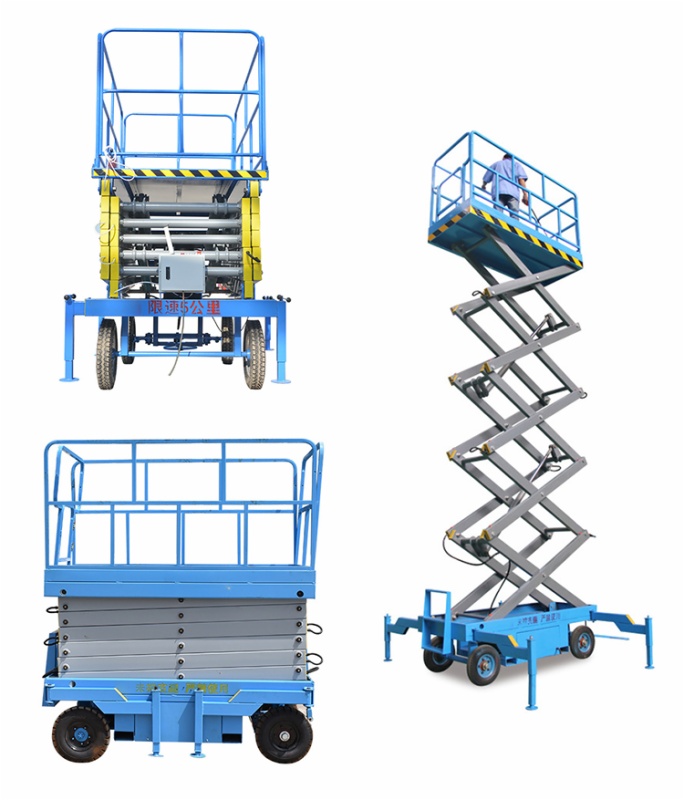

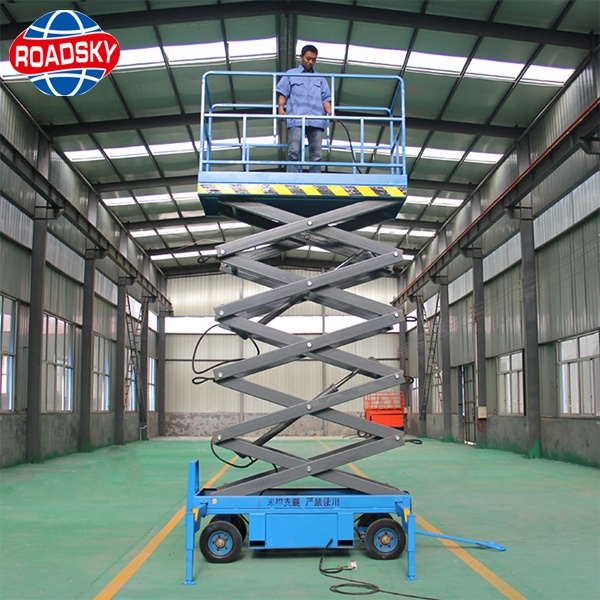

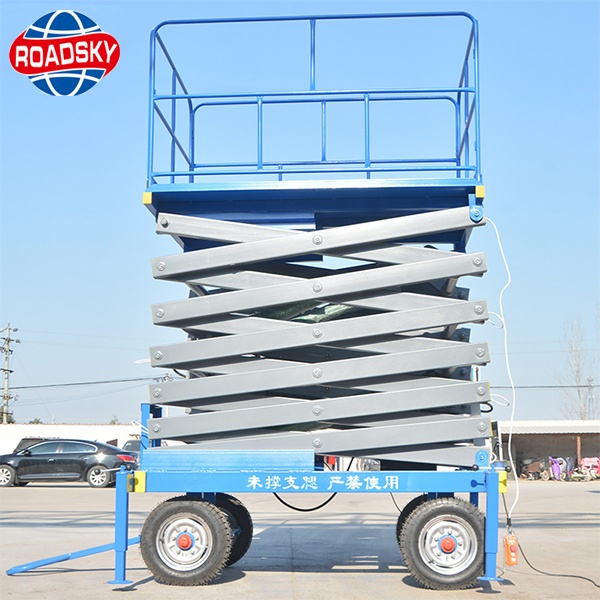

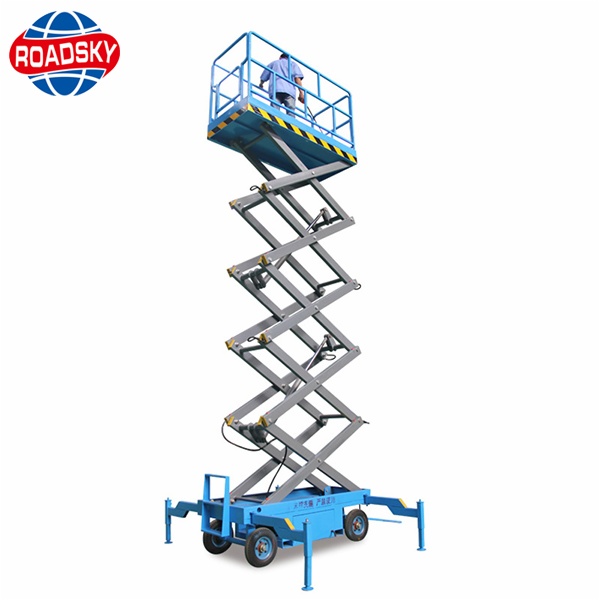

More Pictures:

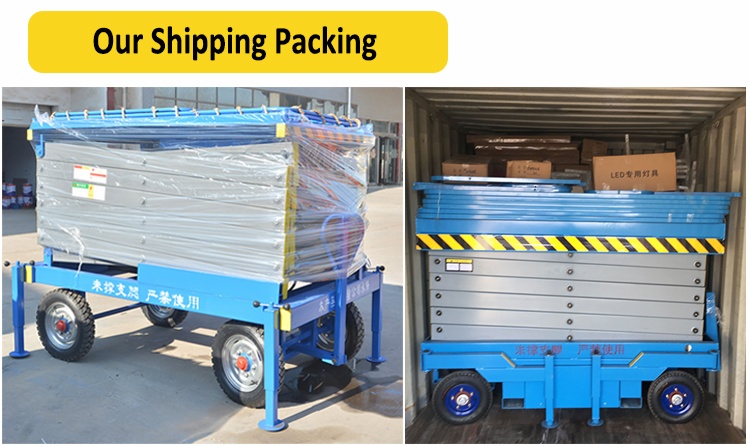

Packaging&Shipping:

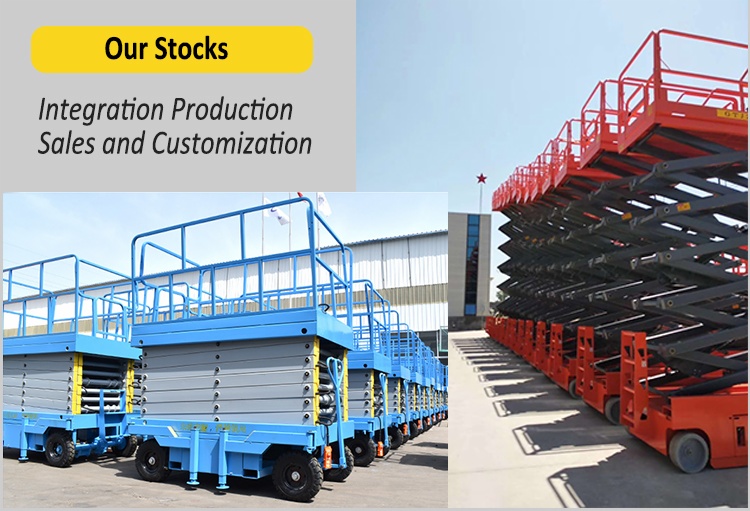

Workshop:

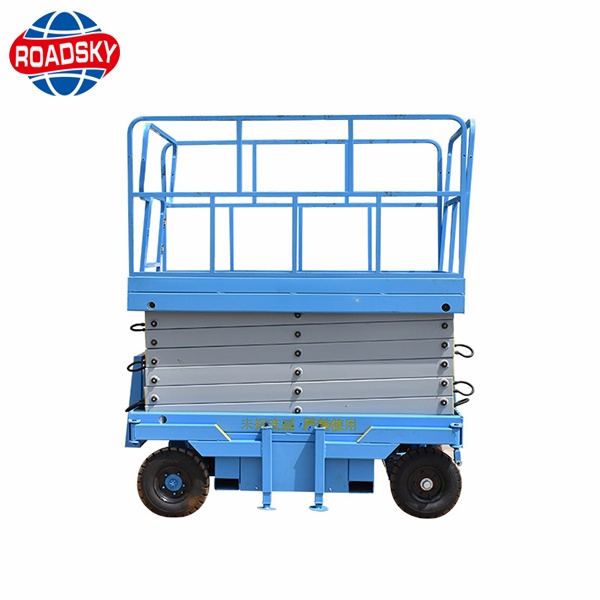

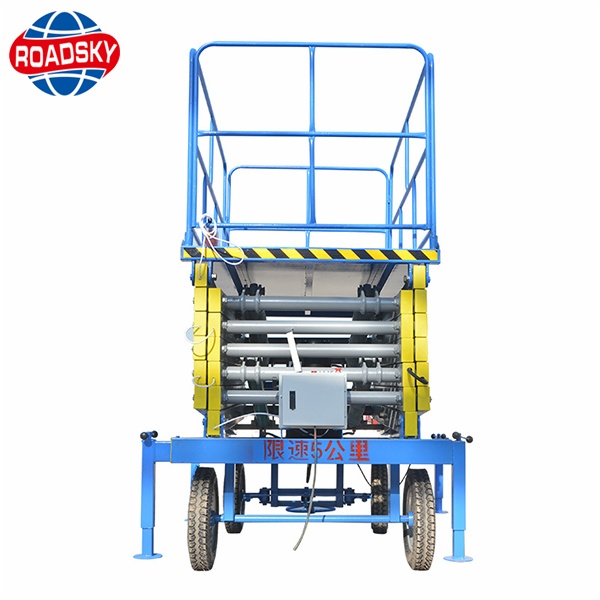

More Pictures:
Our Services:
Why Us?
* Professional engineers team and Rich manufacturing experience
* Prompt reply and Timely delivery
* High quality & Competitive price
Any interests about our reflective film, please feel free to send us inquiry or call us directly, we will be there to serve your needs timely.
Sincerely hope to establish good business relations with you, our distinguished client !
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory which in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nanjing City, Jiangsu Province, China, about 1.5 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.Pls send sample inquiry and leave us your email ,then we will send you more information about the samples for your reference.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. All staffs always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
