Application:

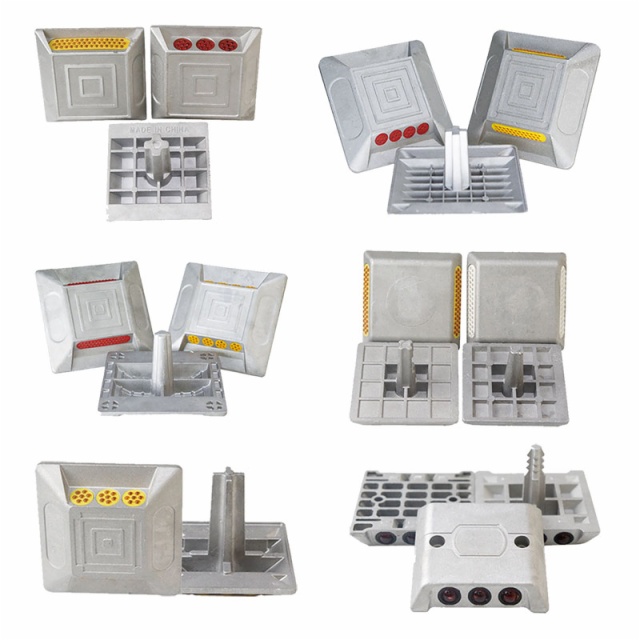

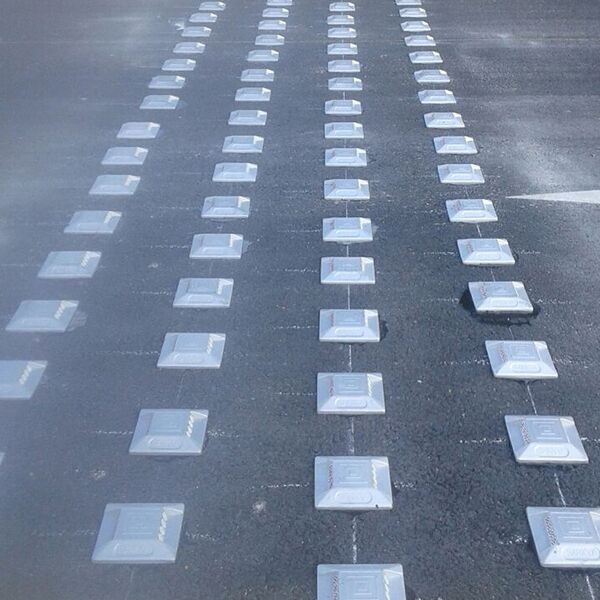

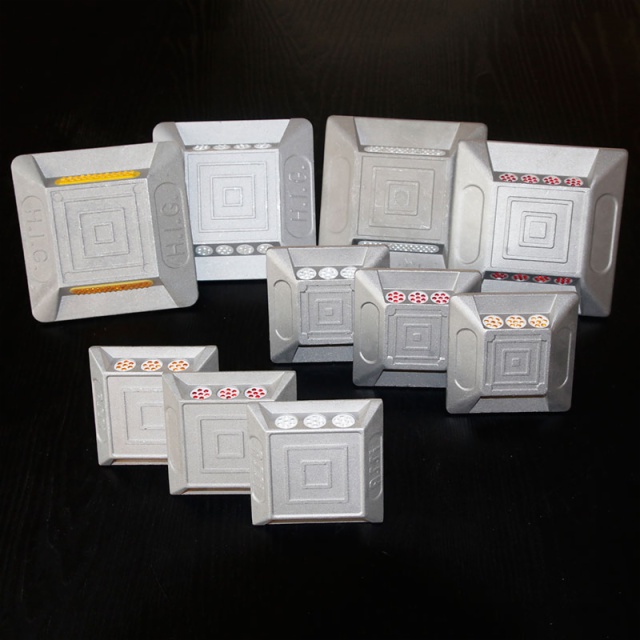

Aluminum road stud is suitable to install in the middle of the road, the reflector will remind the driver to drive on his ways.
Size: 100*100*20 mm /150*150*25 mm and etc.
Reflector color: Red, White, Yellow, Blue, Green or Customized
Resist compression: ≧20 ton
Reflective distance: About 350m
Weight : About 200~700g
Service Life: 3~5 years
Working Temperature: -40~+60°C
Usage: For road safety
Model |
DA100-B10 |
DA100-B20 |
DA100-B40 |
Size |
100*100*22mm (4*4*1") |
100*100*22mm (4*4*1") |
100*100*22mm (4*4*1") |
Anchor |
60mm (2") |
70mm (3") |
50mm (2") |
Weight |
300g |
275g |
400g |
Model |
DA150-B20 |
DA150-B40 |
DA100-B70 |
Size |
150*150*25mm (6*6*1") |
150*150*25mm (6*6*1") |
100*100*21mm (4*4*1") |
Anchor |
60mm (2") |
65mm (3") |
50mm (2") |
Weight |
535g |
660g |
350g |
Rolling test of aluminum road studs:
Feature: 1. Made of Aluminum Alloy material,the studs can bear capacity over 30 tons from vehicle tires. 2.Strong reflective light like diamonds at 350m far away making it safe for driving in poor visibility conditions. 3.Excellent anti-corrosion ability and heat-resist ability to make the road studs work under water, oil, grit and chemical material and temperature range -40°C to 60°C.
