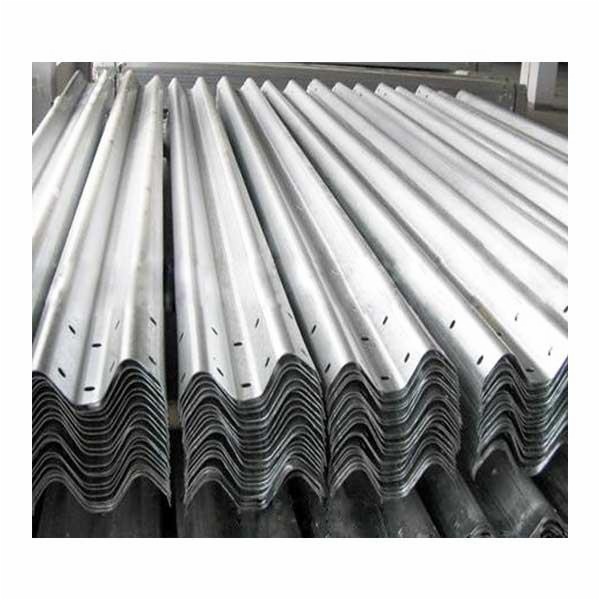

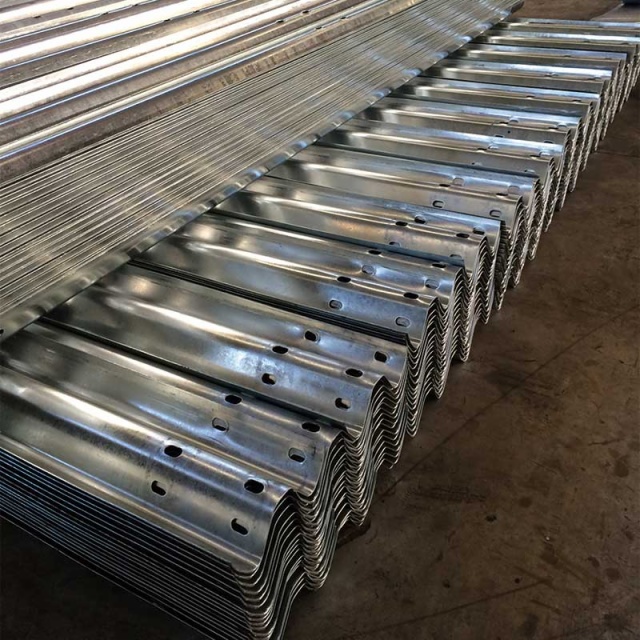

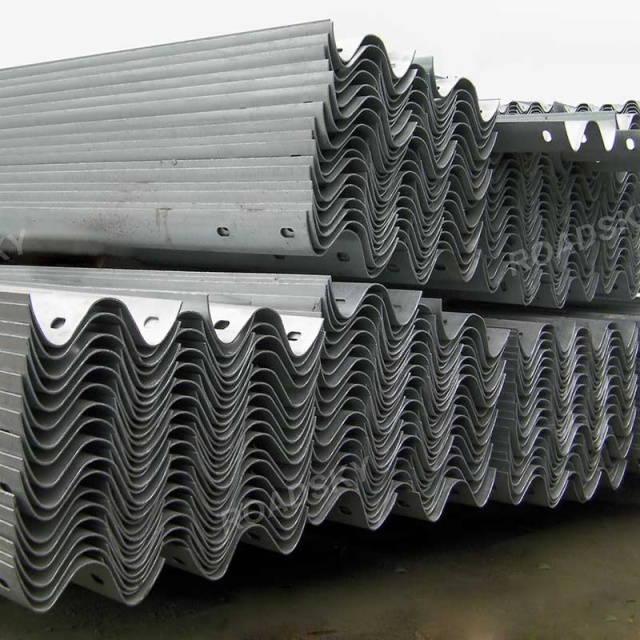

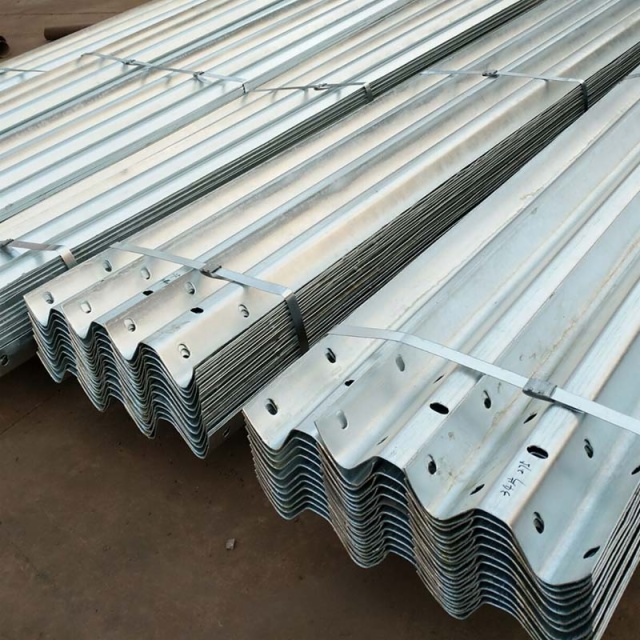

Roadsky Highway Galvanized W Beam Guardrail

Item Code: Features:Roadsky offers everything about highway guardrail system such as W beam guardrail, guardrail installation, bolts&nuts etc.
  • Description

Roadsky Traffic Facility provides hot dip galvanized W beam guardrails for highway & bridge railing system with factory price.

Detailed Specification:

Name W beam or Three beam Steel Highway Guardrail
Normal Size 1500*100*50*25*5mm,1500*120*55*16*4mm,1700*150*110*18*4/4.5mm,1750*120*55*16 *4mm,1900*100*55*25*4mm and available in different sizes
Applicable standards JT/T 281-1995(China), AASHTO M180-79(USA), TL-SP 92(Germany) or any other International Standards.
Base steel: Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).
The thickness of the steel 4mm, 4.5mm, 5mm or according to consumers’ request
Surface treatment Hot dip galvanized or powder coated
The thickness of galvanized (double sides) 550g/m2 (80µ) or 610g/m2 (85µ) or 1100g/m2 (160µ) or 1200g/m2 (170µ) or as per your request.
Certificate ISO9001:2000, ISO14000, SGS, CE, etc.
Relevant parts required for guardrails Guardrail Beams, Posts, Terminal Ends, Spacers / Offset Blocks, Reflector, Anti Dazzle Boards and Bolt & Nut & Washer etc.
 Features Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.

Advantages:

a. Can ensure minimum damage to the vehicle and its drivers and passengers.

b. Repairs are quick ensured and complete road safety is maintained along the entire length of guardrail.

c. All components are galvanized and steel as a countermeasure against the elements for a longer service life.

d. OEM or ODM service offered

e. Precision machining and extensive exporting experience

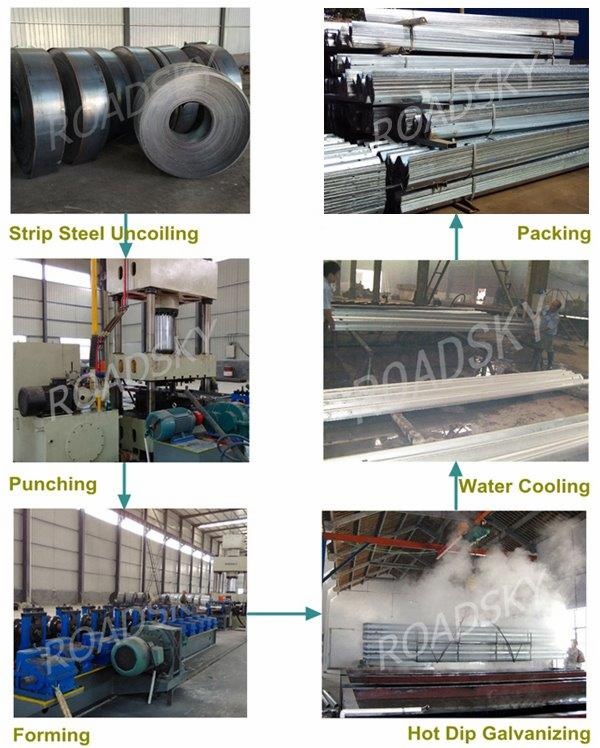

Production Process:

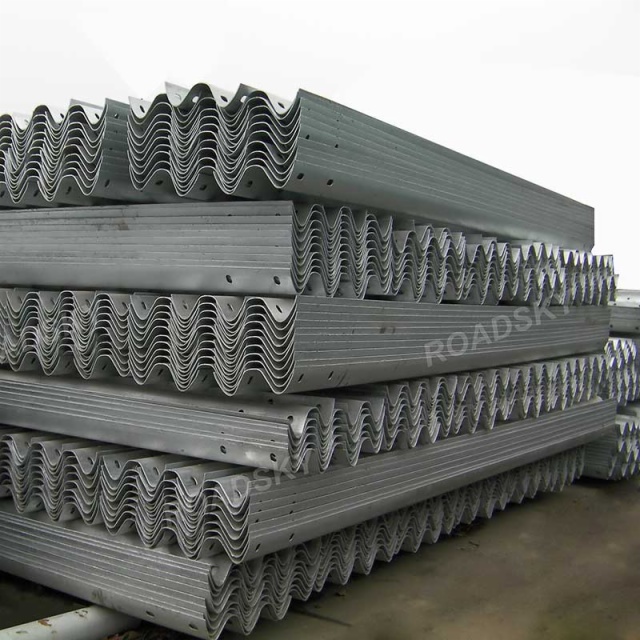

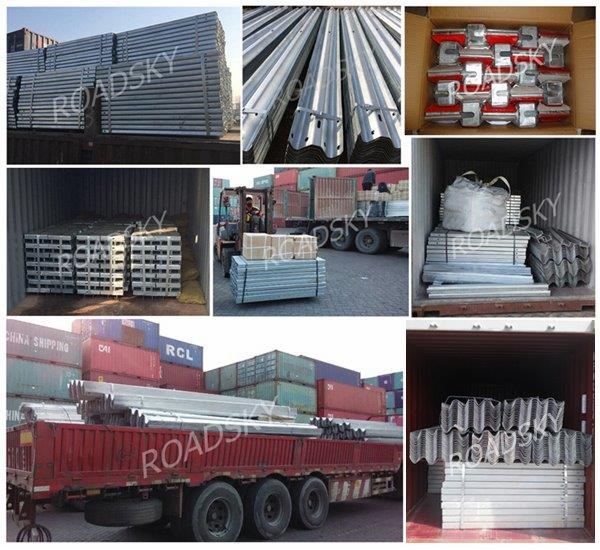

Package & Shipment:

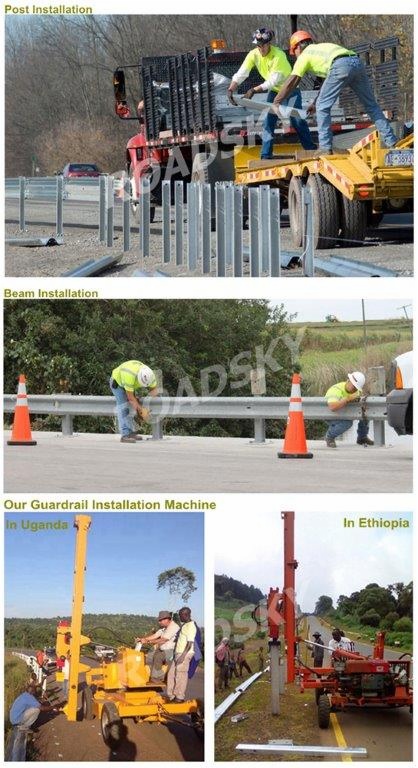

Installation of Steel Highway Guardrail:

Relevant Part:

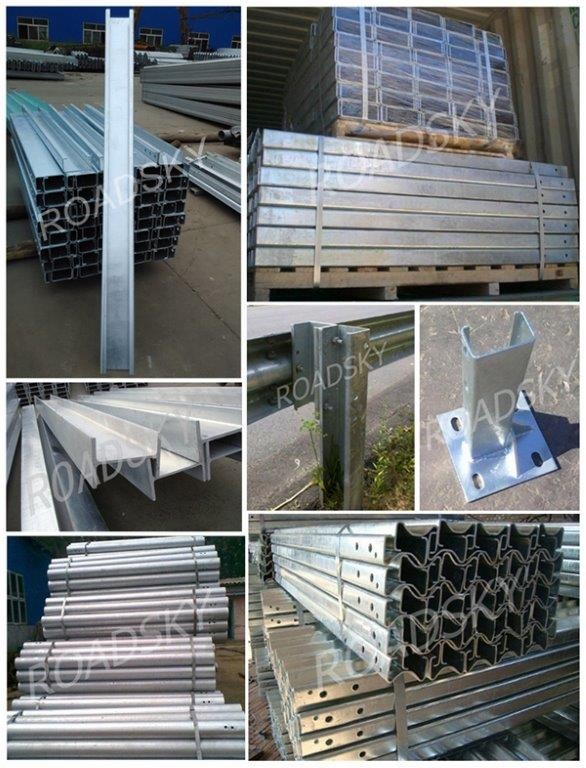

a. Posts:

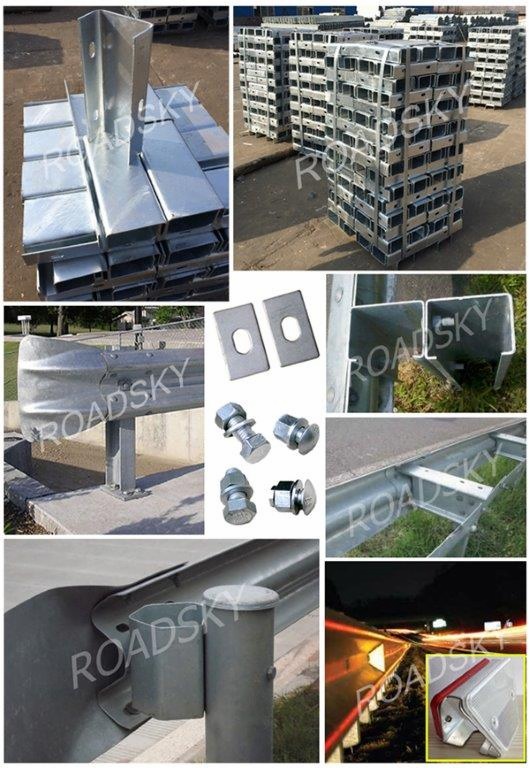

b. Other Accessories:
