Description

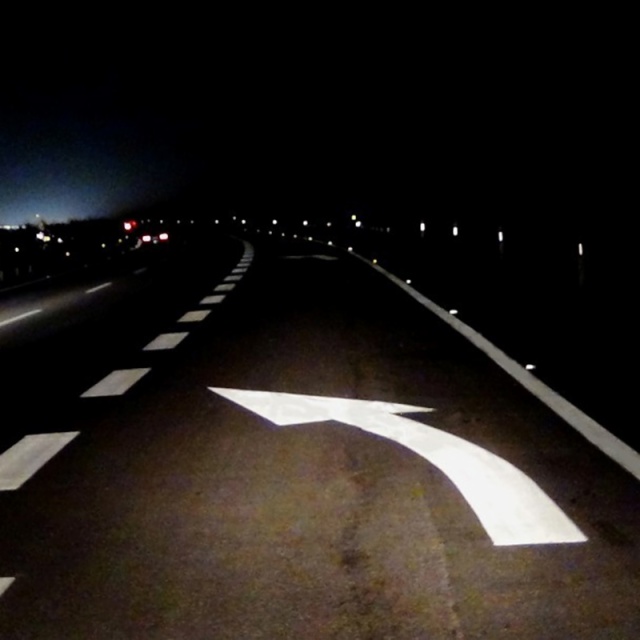

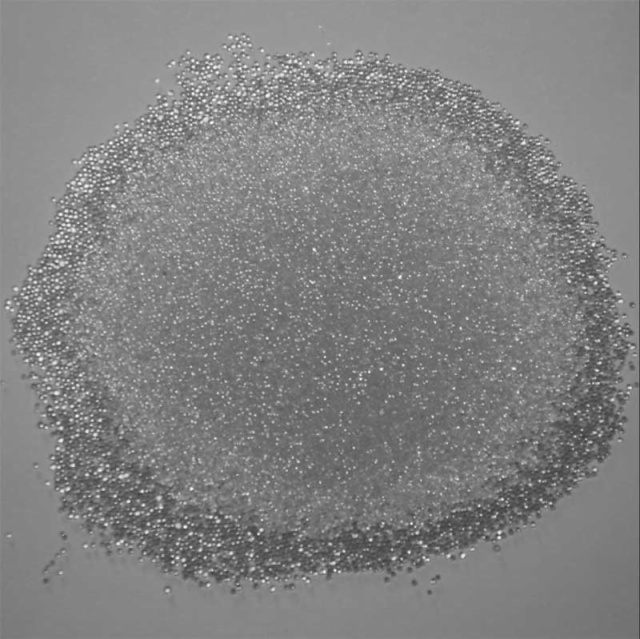

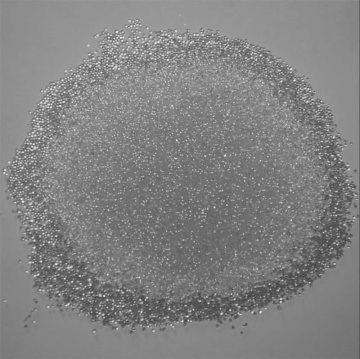

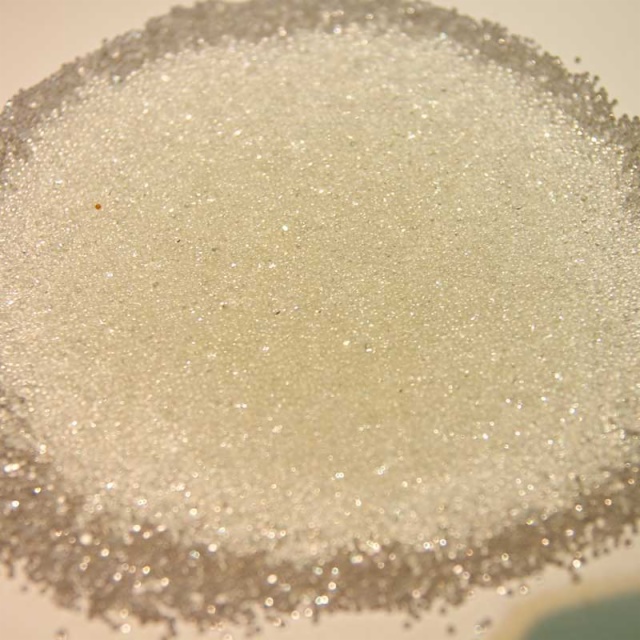

Glass Beads are tiny glass particles that are added to road marking paint to make marking lines possess reflectivity. There are three types of glass beads distinguishing themselves from each other by size of particles: type one of the biggest size can be directly mixed in thermoplastic paint during production; type two of the medium size is used for outside spraying on the thermoplastic paint; type three of the tiniest size is used for outside spraying on cold solvent paint.

	Type	Size (μm)	Percentage(%)
British Standard	BS6088A (intermix)	>1180	0~3
		1180~850	5~20
		850~425	65~95
		<425	0~10
	BS6088B (Drop on)	>850	0~5
		850~600	5~20
		600~300	30~75
		300~180	10~30
		<180	0~15
American Standard	Intermix	>850	0
		850~600	5~25
		600~300	40~80
		300~150	10~35
		<150	0~5
	Drop on	>600	0
		600~425	0~10
		425~300	15~50
		300~180	45~75
		<180	0
China Standard	Intermix	>850	0
		850-600	5-30
		600-300	30-80
		300-106	10-40
		<106	0-5
	Drop on	>600	0
		600-300	40-90
		300-150	5-60
		<150	0-5
	Cold paint glass beads	>212	0
		212-90	96-100
		<90	0-4

Features:
1. Good chemical stability, certain mechanical intensity and hardness, free of dark spots and other impurities
2. Does not cause dimensional change to the base material
3. Environmentally friendly
4. High reflective performance

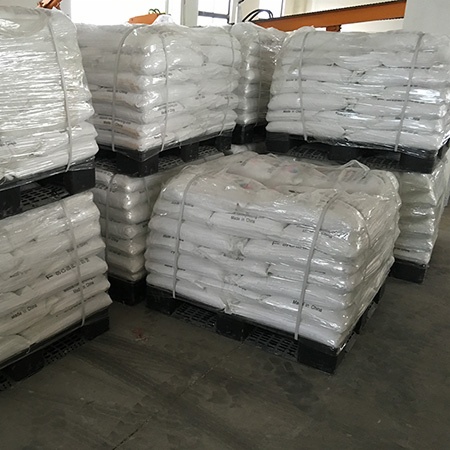

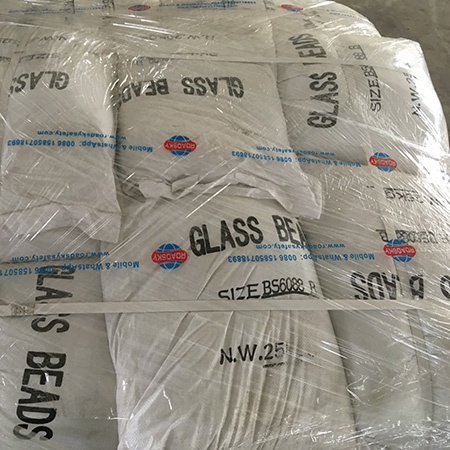

Packing
