Model

Unit

CPD30

Rated Load

kg

3000

J Load center distance

mm

500

H1 Max.lift height

mm

3000

H3  Free lifting height

mm

145

L1×W×T   Fork size

mm

1070x125x45

Gantry inclination

deg

6/10

Dimension

L Total Length (without fork)

mm

2480

W1 Total Width

mm

1238

H2 The gantry cannot be lifted

mm

2070

H4  Height of safety frame

mm

2201

R1 Min.turning Radius

mm

2210

L2  Front suspension

mm

488

Tread

S front wheel

mm

1000

P rear wheel

mm

950

M2 Min.ground clearance(frame)

mm

125

L3 wheelbase

mm

1685

Right angle stacking channel width

1000x1200(transverse)

mm

3968

800x1200(longitudinal)

mm

4098

Speed

Move(Full-load/Empty)

Km/h

13/12

Lift(Full-load/Empty)

mm/s

240/400

Max.Grade ability(Full-load/Empty)

%

13

Self-weight

kg

4740

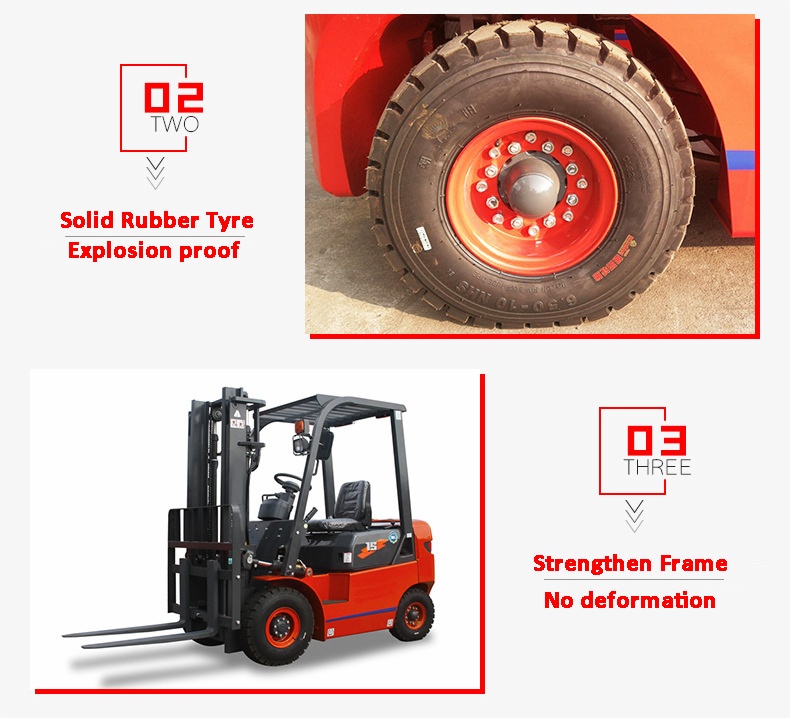

Tyre

Front

28×9-15-14PR

Rear

18x7-8-14PR

Electric Motor

Move

Kw

11

Lift

Kw

15

Controller

inmotion

Storage Battery

V/Ah

48/700(Lead-acid)

Working Pressure

Mpa

21

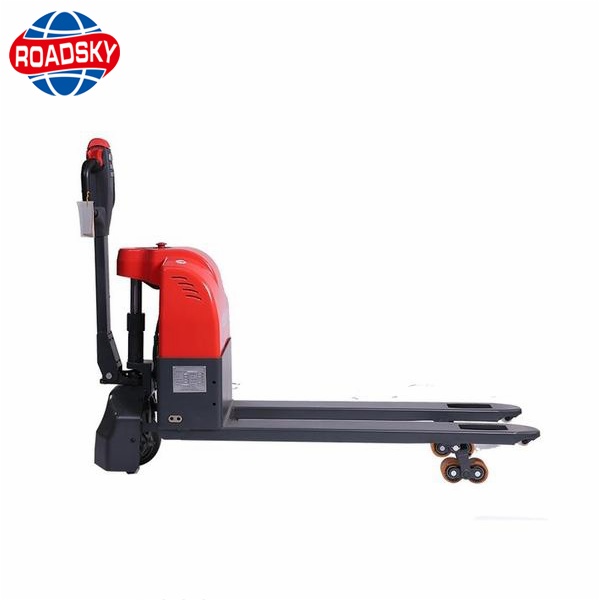

Model

Unit

Driving Mode

Electricity

Rated Load

Ton

1.5

Wheelbase

mm

1202

Lifting Height

mm

2000

Fork Dimension

mm

50/150/1150

Driving Speed

Km/h

4.2/4.5

Brake Type

Electrom agnetic brake

Drive Motor Power

Kw

0.75
