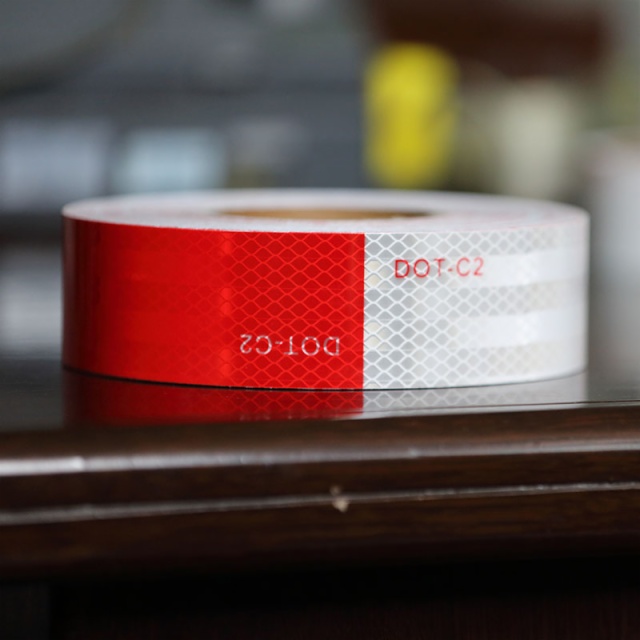

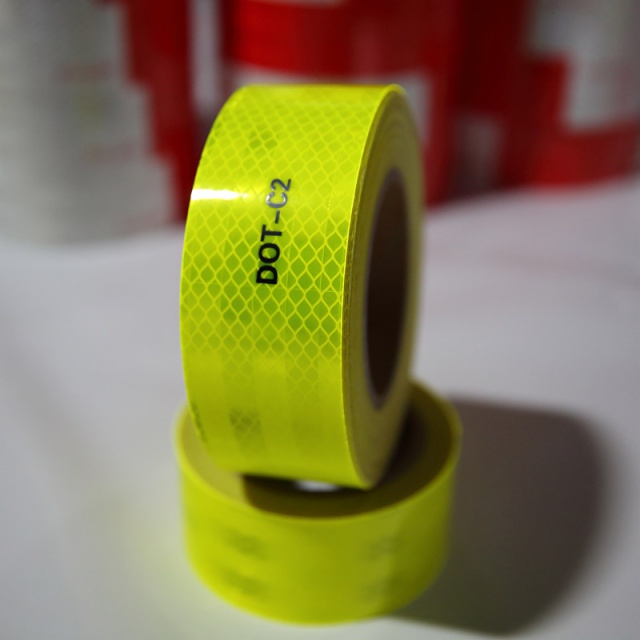

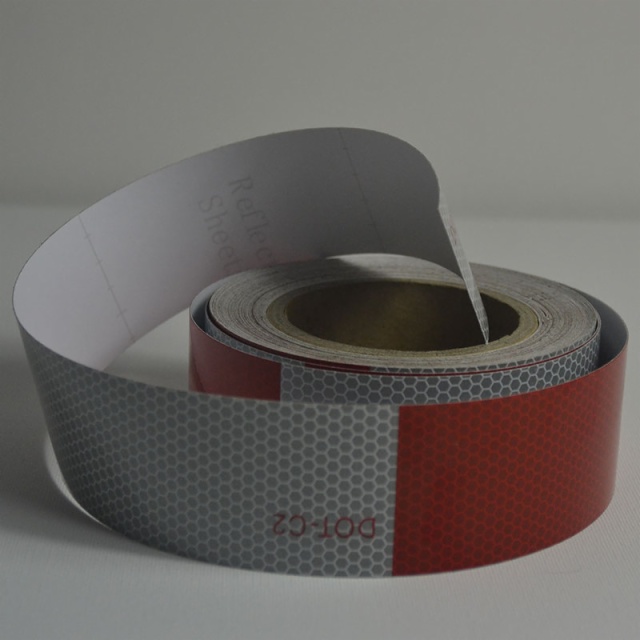

Reflective Safety Truck Reflector Sticker

Item Code: Features:
  • Description

Vehicle Reflective Sheeting is used designed as truck markings to improve safety of night driving. The sheeting is mainly made of PMMA, PC , PET and pvc materials. Micro-prism ensure the reflective performance can be maintained for a long time.

Specifications:
Service Life: 3 to 5 years
Specification: 0.05m*45.72m
Certificate: EN12899 and ASTM.
1. Available color: White, yellow, red, green, blue, orange, brown
2. Surface Film: Acrylic Type (PMMA, PC and PET)
3. Type of Adhesive: Oily Pressure-Sensitive Type
4. Thickness of film: 0.255mm, Thickness of Glue: 0.045mm
5. Weight of Release Paper: 160g/sqm
6. Strength of Adhesive: at the condition of 0.8kg, 5min, total length: 10cm, the falling Length≤2cm
7. Working temperature: -20 to 60 degree

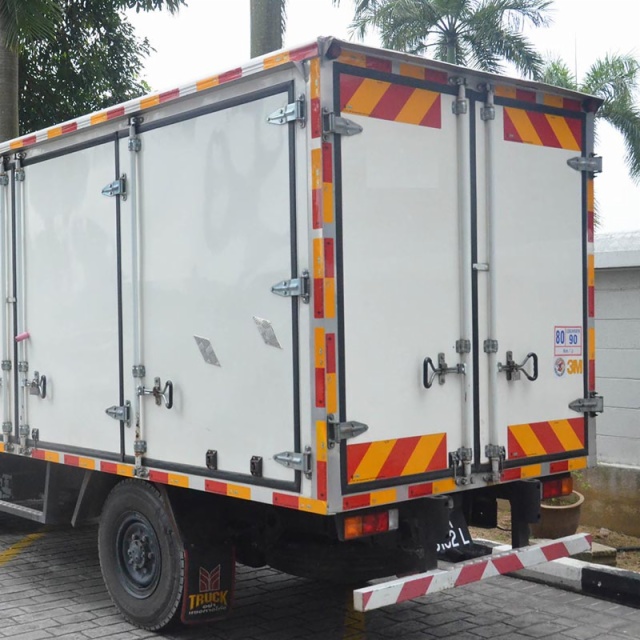

8. Application: traffic signs of highways and city roads, retro-reflective marking for cars, trucks, ships and other vehicles, high way traffic signs, warning and guiding signs, etc.

Color Chromaticity:

Color

Color Chromaticity

Luminence
X       Y X        Y X        Y X        Y Factor
White 0.350  0.360 0.300   0.310 0.285   0.325 0.355   0.375 ≥0.27
Yellow 0.545  0.454 0.464   0.534 0.427   0.483 0.487   0.423 0.16---0.40
Red 0.690  0.310 0.658   0.342 0.569   0.341 0.595   0.315 0.03---0.10
Green 0.007  0.703 0.026   0.399 0.177   0.362 0.248   0.409 0.030.10
Blue 0.078  0.170 0.137   0.038 0.210   0.160 0.150   0.220 0.01---0.10

Coefficient of retro-reflection:

Tested with white reflective sheeting

Observation Angle
Material Entrance Angle Coefficient of Retroreflection Service Life
0.2° PMMA -4° 360cd/lx/m² 10 years
PC -4° 500cd/lx/m² 7 years
PET -4° 250cd/lx/m² 5 years
PVC -4° 200cd/lx/m² 3 years
