Application:
Solar road stud is used on Highways, at parking lots, also used on curves on roads.
Material:Cast Aluminum, Plastic, Glass
Solar Panel Voltage:2V/100-200mAH, 3.5V/78-120mAH and etc
Solar Panel Material:Monocrystalline silicon or polycrystalline silicon
Battery Voltage:1.2V/600-800mAH, 2.4V/600mAH, 2.4/650mAH
Battery Type:NI-MH, Li-Po, Super-capacitor
LED Color:White, Red, Yellow, Green, Blue or customized
Reflector Material:PMMA, PS
Working Model:Flash (2Hz±20%) or steady(constant)
Visibility:>500m
Resist compression:20~30ton
Model |
Size(L*W*H) |
Solar Panel |
Battery |
Anchor Length |
Pressure Resistance |

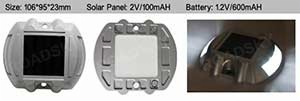

DSA-300 |
106*95*23mm |
2V/100mAH |
1.2V/600mAH |
/ |
20ton |

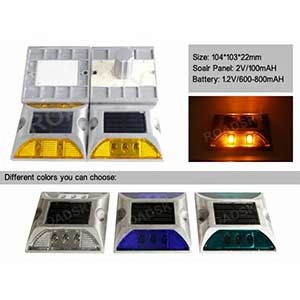

DSA-400 |
104*103*22mm |
2V/100mAH |
1.2V/600-800mAH |
48mm |
20ton |

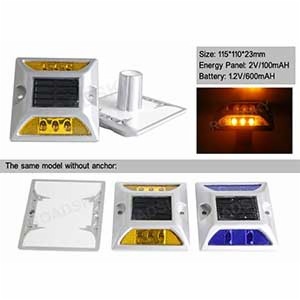

DSA-500 |
115*110*23mm |
2V/100mAH |
1.2V/600mAH |
51mm |
20ton |

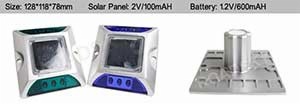

DSA-600 |
128*118*78mm |
2V/100mAH |
1.2V/600mAH |
54mm |
20ton |
Feature: 1.Using LED as the light source, it is energy saving and environmental protective 2.Proving great visibility for drivers at night and during bad weather conditions to prevent fatal accidents and serious injuries caused by hidden and hard-to-see center lines. 3.Cost effective,easy to install and virtually no maintenance.
